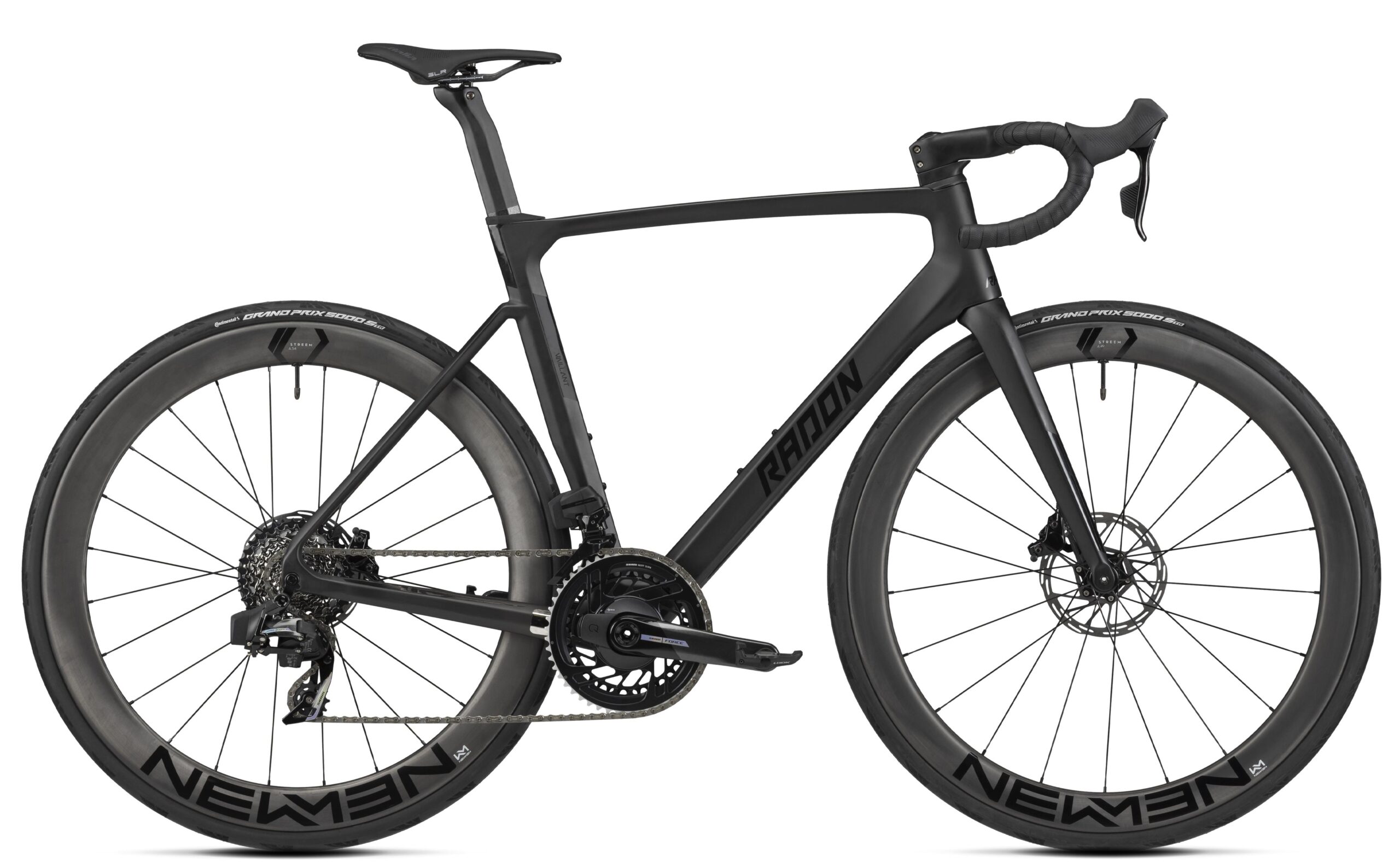

Radon VAILLANT 10.0
Highlights of the VAILLANT 10.0
You decide what's possible, the material won't slow you down! 50/37 teeth at the front, 10-36T cassette at the rear - the widest range for almost every situation. When the descent is calling and you're racing down the pass at a good pace, you can rely on the hydraulic SRAM Force AXS HRD brakes: Precise braking or finely modulated use - you won't get the brakes to glow any time soon! The VAILLANT 10.0 also benefits from the new NEWMEN Streem wheels A.49 at the front and A.54 at the rear. With this combination, the high-end forge from the Allgäu region has elegantly solved the issue of a separate mountain and aero wheel and, with 1440 g and a 24 mm rim width, is not only convincing on paper. In practice, this means that the Continental Grand Prix 5000 S TR feels at least as comfortable as you do and thanks you with maximum traction at the limit and a smooth ride. The icing on the cake is the Selle Italia SLR Boost Kit Carbonio with ultra-light carbon rails. Together with the elegant carbon stem/handlebar unit with integrated cable routing, the VAILLANT 10.0 looks as if it has been cast from a single mold. Can you resist?
The VAILLANT Family
Our classic VAILLANT road bike starts the new season with fresh designs. The VAILLANT is our fastest road bike with a lightweight carbon frame and aerodynamically optimized design - the perfect all-rounder! The handlebar/stem unit with integrated cable routing and the seat post, which is matched to the shape of the frame, are made of high-quality carbon. We are at the starting line with three models and electronic groupsets from Shimano and SRAM in attractive price segments. The NEWMEN wheelsets underline the aerodynamic ambitions. VAILLANT - made for speed lovers and racing fans!
The VAILLANT Frame
The heart of our VAILLANT: The modern full carbon frame embodies the perfect symbiosis of advanced technology, impressive design and aerodynamic efficiency. Thanks to the flow-optimized carbon seatpost specially developed for the VAILLANT and the aerodynamic handlebar-stem unit with integrated cable routing, the frame adopts the current trends of the aerodynamically shaped all-round racers of the competition and sets new standards for performance and aesthetics in our racing bike portfolio. VAILLANT, with every heartbeat - pure evolution on the road!
The UD-Carbon Finish
It is a common feature of UD carbon that you can see individual layers of carbon under the glossy or matt clear coat - each frame is unique due to the manufacturing process by hand and is therefore one of a kind. The fibers are arranged in parallel during this manufacturing process, so there is no need for a specially laid "visible layer" or carbon layer.
Configuration
| Frame: | VAILLANT (Maximale Reifenbreite: 30mm; Schaltauge: #4254) |
|---|---|
| Frame material: | Carbon |
| Wheel size: | 28" |
| Speeds: | 2 x 12 |
| Colour: | UD carbon / deepblack |
| Fork: | VAILLANT Full Carbon |
| Brakes: | SRAM Force AXS HRD, flat-mount |
| Brake discs: | SRAM Paceline, 160/160mm, center-lock |
| Headset: | IS52/IS52 (Integrated cable routing; bearing dimensions top + bottom 51.8x8mm) |

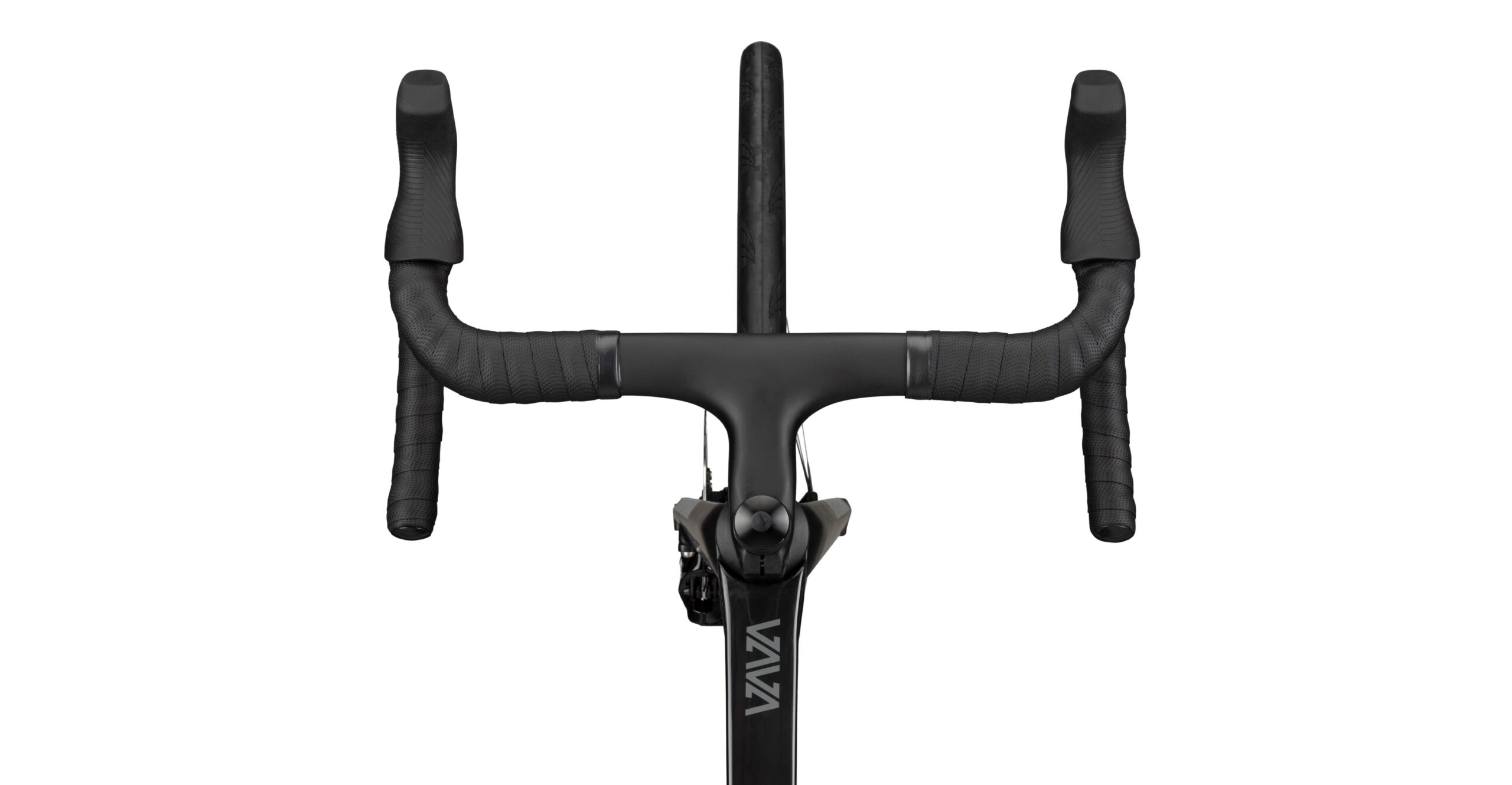

| Handlebar: | VAILLANT Aero Carbon stem-handlebar unit (XS: 90mm/400mm; S: 90mm/400mm; M: 100mm/420mm; L: 100mm/420mm; XL: 110mm/440mm) " |
| Handlebar tape: | RADON performance tape |
| Saddle: | Selle Italia SLR Boost Kit Carbonio Superflow (L3: 145mm) |
| Seatpost: | VAILLANT Carbon Seatpost, 350mm |
| Crankset: | SRAM Force D2 Carbon Powermeter, DUB, 50/37T (XS: 170mm; S: 172,5mm; M: 172,5mm; L: 175mm; XL: 175mm) |
|---|---|
| Bottom bracket: | SRAM DUB Road, Pressfit |
| Rear derailleur: | SRAM Force AXS D2, 12-speed |
| Gear shifters: | SRAM Force AXS HRD, 2x12 |
| Front derailleur: | SRAM Force AXS D2, braze-on |
| Cassette: | SRAM Force XG-1270, 10-36 |
| Chain: | SRAM Force D1 |
| Tyres: | Continental Grand Prix 5000 S TR, 28" x 28mm |
| Wheelset: | NEWMEN Streem A.49, 100mm; NEWMEN Streem A.54, 142mm (Felgenhöhe: vorne 49mm, hinten 54mm; Maulweite: 24mm; Tubeless ready: ✔; Tubeless Ventile: ✔; Tubeless Felgenband: ✔; Tubeless Milch: nicht enthalten) |
| Pedals: | not included in the scope of delivery |
| Maximum total weight allowed: | 115 kg (body weight + bike + equipment) |
| Weight: | ab 7,60 kg |
