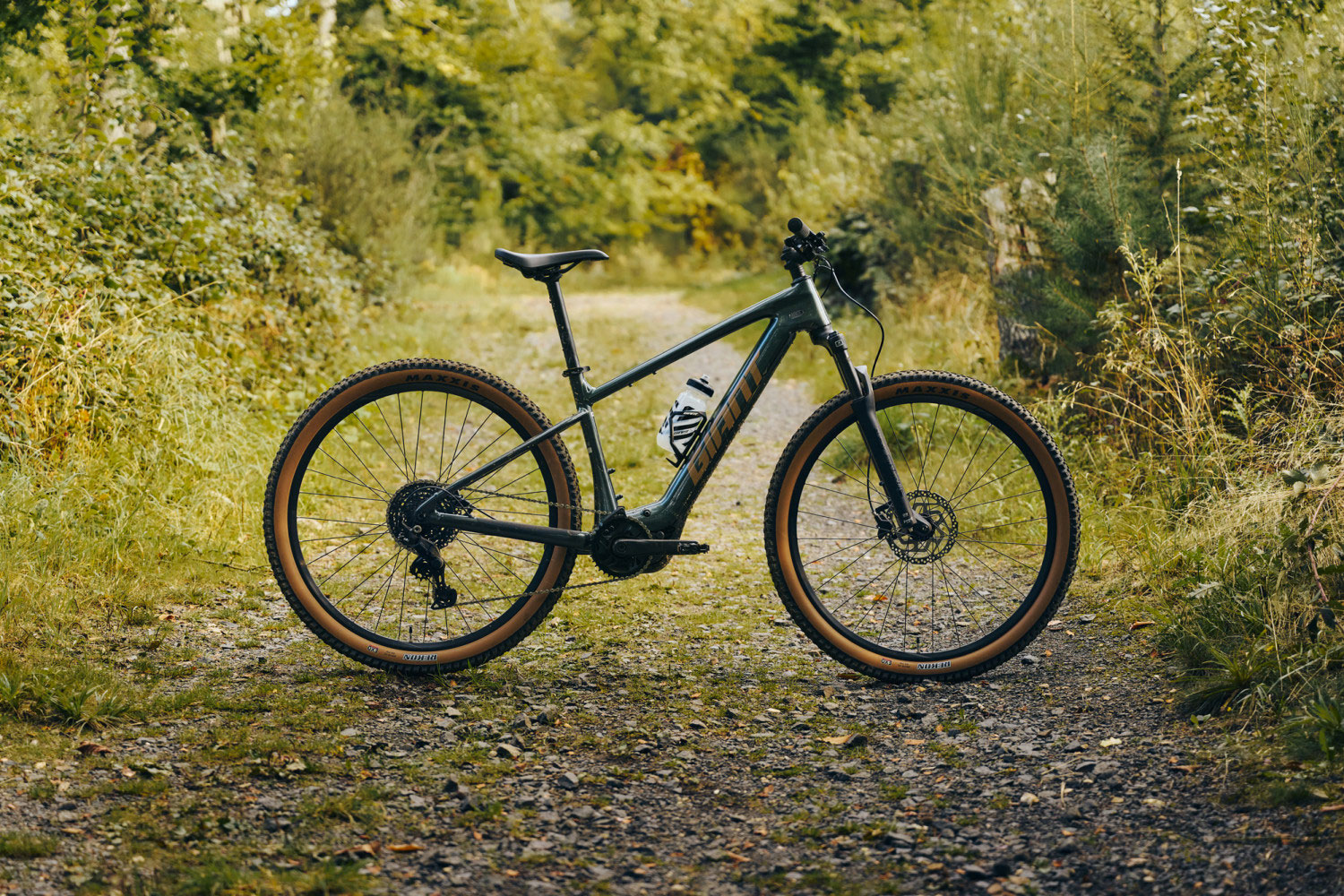

Giant Talon E+ Gen2 Asphalt Green
Features - Giant Talon E+ Gen2
- Robust ALUXX aluminum frame with UDH derailleur hanger standard
- SyncDrive Sport2 motor with 75Nm torque (powered by Yamaha)
- Giant EnergyPak 430Wh battery (+200 Wh range extender compatible) and EnergyPak Smart Charger 4A
- Easy-to-read Giant RideControl Dash 2 color display with integrated remote control on the handlebars
- Shimano Cues 1 x 9-speed groupset
- Shimano MT200 2-piston disc brakes
- Griant GX03V aluminum wheelset
- Maxxis Rekon 29x 2.4" clincher tires
Highlights
Talon E+ Gen2
With its brand new, lightweight aluminum frame that combines modern hardtail design with our latest e-bike technologies, the new Talon E+ EX is a versatile bike that's great for the daily commute to work or weekend off-road adventures. A 100 mm suspension fork cushions bumpy surfaces and gives you confidence and control on uneven roads and paths. The SyncDrive Sport 2 motor helps you tackle climbs, and the removable EnergyPak 430 battery is integrated into a redesigned, slimmer down tube. Updated controls include a handlebar-mounted RideControl Dash 2 control unit that allows you to turn the bike on and adjust assist levels. The frame is compatible with a dropper post and has integrated mounts for a pannier rack, mudguards, a kickstand and two bottle cages so you can attach an EnergyPak Plus Range Extender.
SyncDrive Sport 2
This frame comes with a SyncDrive Sport 2 motor and a removable EnergyPak 430 battery neatly built into a slim down tube to reduce weight. The new design offers space for two water bottles or a battery range extender for longer rides. A 100 mm suspension makes bumpy terrain more comfortable, while the reliable off-road geometry ensures a stable ride quality.
Range
Approximately how far can I ride on one battery charge cycle? The range for a single battery charge can vary greatly. It depends on many factors, the most important of which are Rider weight, payload, air resistance, tire pressure and tread, terrain and elevation profile, road or trail conditions, outside temperature, e-bike maintenance, and battery condition. The bar at the bottom shows the approximate range. The conditions are categorized as extreme, good and ideal. Extreme conditions usually occur when you are riding with a heavy load, strong headwind or excessive incline.
RideControl Dash 2
With the new RideControl Dash 2, a controller on the handlebars, you can easily switch on the bike and adjust the support levels while riding. You can also use the RideControl app to adjust the motor power individually and optimize the range.
Designed Lighter
The frame is made of lightweight aluminum with sleek lines and modern design. It weighs just 21.7 kg (size M) - significantly less than most other bikes in its category.
Technologies
Hybrid Cycling Technology
Hybrid Cycling Technology combines electronic drive with human power, allowing riders of all types to experience the full potential of GIANT e-bikes.
EnergyPak Smart 430
GIANT's latest EnergyPak battery systems feature a streamlined design integrated into the e-bike for a sleek and modern profile. Various EnergyPak options are available - including EnergyPak Smart and EnergyPak - each tailored to different riding styles to best support your e-bike experience. The battery system is neatly integrated into the down tube of the frame. Constant communication between the battery and charger ensures fast charging. The batteries can be charged up to 80 percent in just over 2 hours.
SyncDrive Sport 2
The compact SyncDrive Sport 2 motor delivers a torque of 75 Nm, which is specially tuned for trail riding. The Smart Assist mode uses six sensors to measure your pedal power, cadence, speed and the current incline. On this basis, the system generates assistance that feels natural and harmonious. The compact design also ensures a narrow Q-factor and therefore efficient, comfortable and ergonomic pedaling.
Smart Assist
Six smart sensors accurately measure your power, speed and cadence, as well as the gradient of the terrain you are riding on, to give you just the right support for a natural, powerful riding experience. This helps to optimize the energy efficiency of your battery and yourself.
Ride Control App
The updated app expands the existing customization options for your SyncDrive motor. Define exactly how you want the system to work. Set everything from battery-saving Eco mode to powerful Power mode and collect all relevant data during your ride.

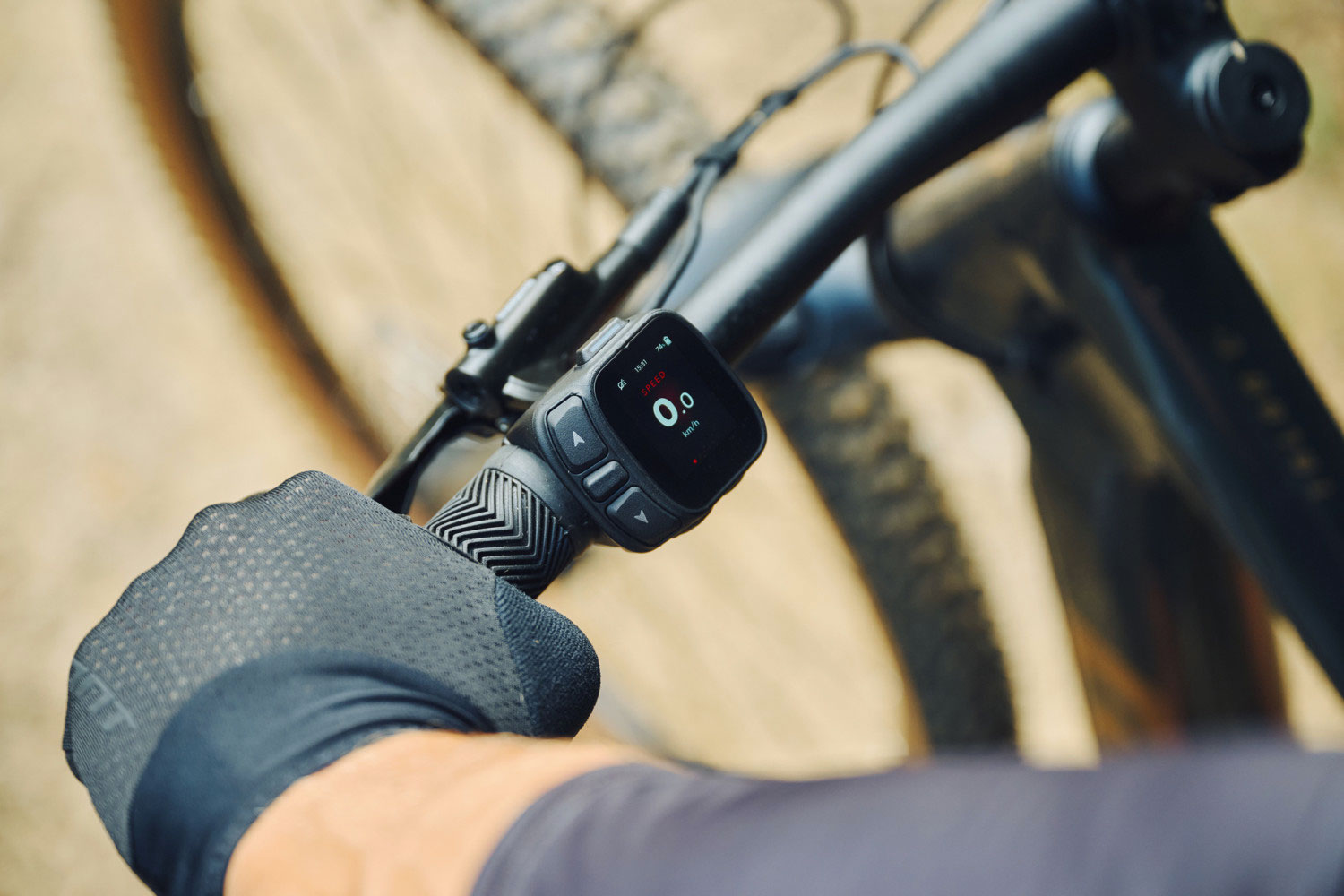

Ride Control Dash 2
This updated control unit is super integrated into the handlebar/grip and has ergonomic buttons that you can use to control the support modes, such as Smart Assist. The high-resolution color screen is fog-free and shows you range, battery level and assist mode, speed and distance as well as incoming calls.
ALUXX SL Aluminum technology
The high-performance material consists mainly of a 6011 aluminum alloy and offers an excellent stiffness-to-weight ratio - ideal for precise and agile handling.
Find My Bike
The integrated security and theft protection function with Apple Find My makes it possible to set up theft alarms, locate the e-bike remotely and receive notifications as soon as its location changes. Apple Find My's data protection measures ensure that location data is encrypted and only stored on Apple servers for 24 hours.
GIANT E-LOCK SYSTEM
The GIANT E-LOCK SYSTEM makes it possible to lock and unlock the e-bike via the RideControl app or by PIN code on the controller. As soon as the bike is locked, the pedal assistance is blocked and the display shows the lock status. In the event of unauthorized movement, the system automatically triggers an alarm.

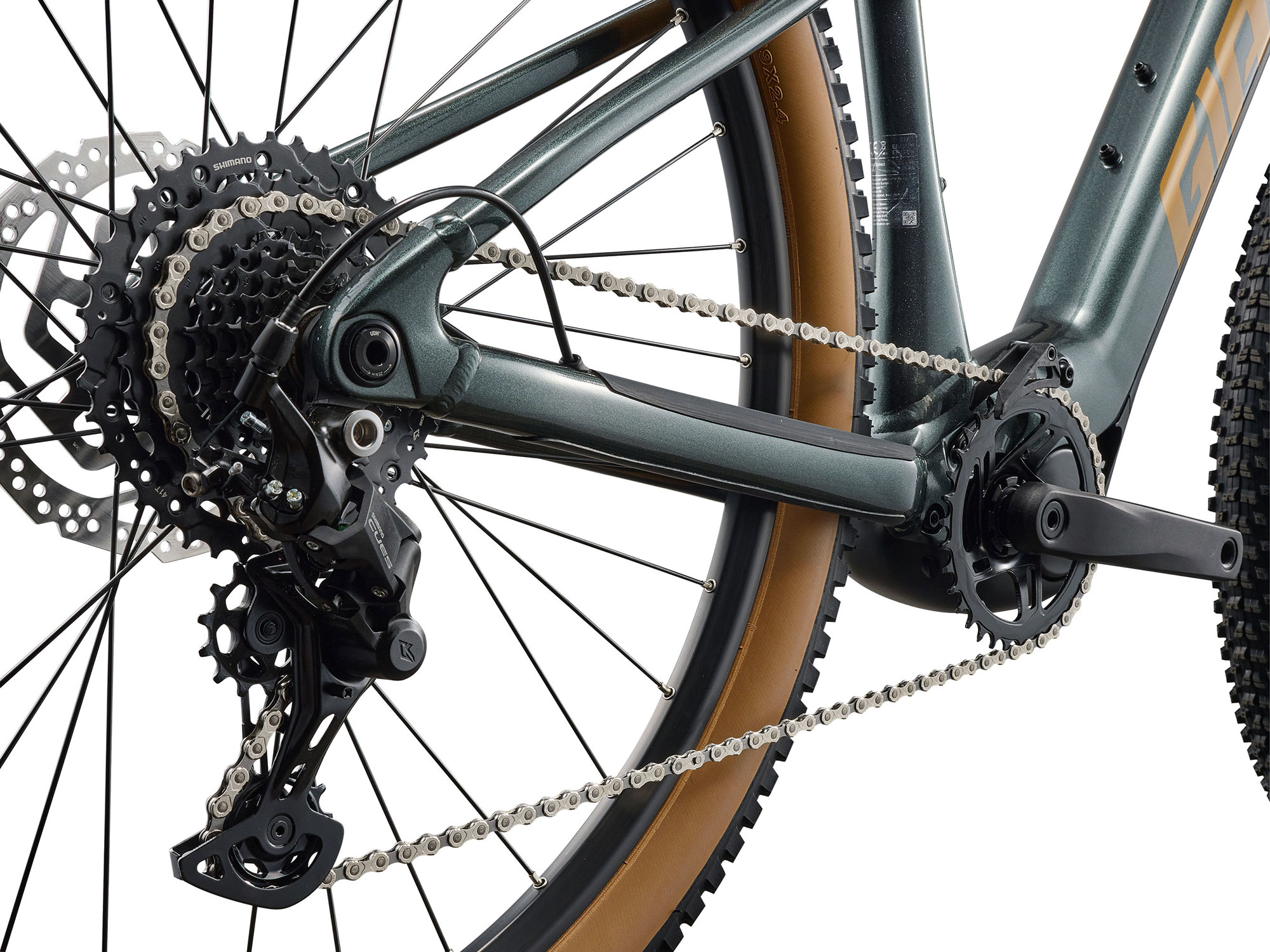

UDH derailleur hanger
A Universal Derailleur Hanger (UDH) ensures exact alignment of the rear derailleur and precise shifting. The UDH derailleur hanger was specially developed for frames with a thru-axle and is a new, more stable standard that allows you to easily upgrade your e-bike with a high-quality drivetrain or replace the derailleur hanger if it breaks.
Configuration
| Frame: | ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount, UDH |
|---|---|
| Frame material: | aluminium |
| Wheel size: | 29" |
| Speeds: | 1 x 9 |
| Colour: | asphalt green |
| Fork: | SR Suntour XCM ATB DS coil 29" 100mm travel 15x110 AH axle 42mm offset / Reb. Adj. / Lockout / 140mm travel |
| Travel: | 100 mm |
| Brakes: | Shimano MT200, hydraulic disc, 180mm [F/R], 2-piston |
| Brake discs: | 180 mm / 180 mm |
| Stem: | Giant Contact 50 mm |
| Handlebar: | Giant Connect TR Riser 20mm, 31.8 mm, S, M: 750 mm, L, XL: 780 mm |
| Bar grips: | Giant Sole-O Grip |

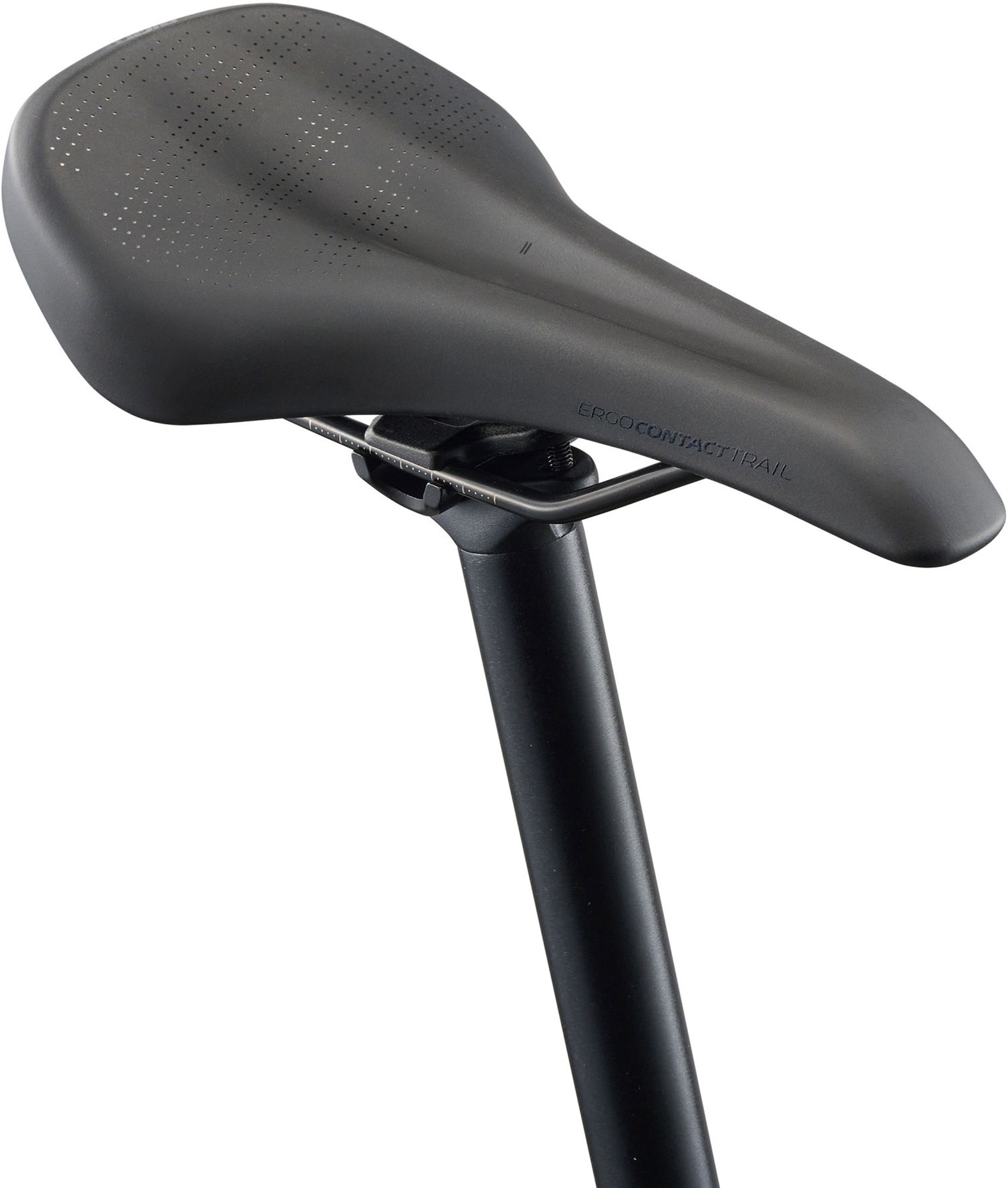

| Saddle: | Giant Ergo Trail ESG |
| Seatpost: | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Crankset: | Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms |
| Rear derailleur: | Shimano RD-U4000 Cues 9-speed |
| Gear shifters: | Shimano Cues LinkGlide |
|---|---|
| Cassette: | Shimano Cues, 11-41T, 9-speed |
| Chain: | KMC eGlide NP/BK, e-bike optimized |
| Tyres: | Maxxis Rekon 29x2.4" |
| Hubs: | eTracker Boost alloy 6-bolt disc 15x110mm [F] 12x148mm [R] |
| Spokes : | Stainless steel |
| Rims: | Giant GX03V alluminum |
| Display: | Giant RideControl Dash 2, high-angle visibility, full color LCD display, Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels |
| Battery: | Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Charger: | Giant EnergyPak smart charger 4A |
| Engine: | Giant SyncDrive Sport 2, 75Nm PedalPlus 6-sensor technology |
| Pedals: | Aluminum Plattform |
| Other details: | Connectivity: Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile |
| Maximum total weight allowed: | 156 kg (Körpergewicht + Fahrrad + Ausrüstung) |
| Weight: | starting from 21,1 kg |
The compact SyncDrive Sport 2 features Smart Assist technology and is tuned for smooth, consistent performance. It is optimized to deliver high performance even at low speeds. Smart Assist technology calculates torque, cadence, incline and speed and uses these calculations to determine the motor power the rider needs. It feels more powerful as it builds up torque faster at low cadences and maintains power at higher cadences.
- Weight: 2.8 kg
- Torque: 75 Nm
- Support level: 400%
- Q-Factor: 168 mm
- Push assist: Adaptive
- Smart Assist: Adaptive assistance
- Voltage: 36 V
- Torque-to-weight ratio: 19 Nm/kg
- Power to weight ratio: 103.4 W/kg
Smart Assist
This automatic, adaptive support system uses six sensors and advanced algorithms to determine the optimum power assistance on changing terrain. With SmartAssist, an adaptive support mode ensures that you get the support you need in every riding situation and topography.

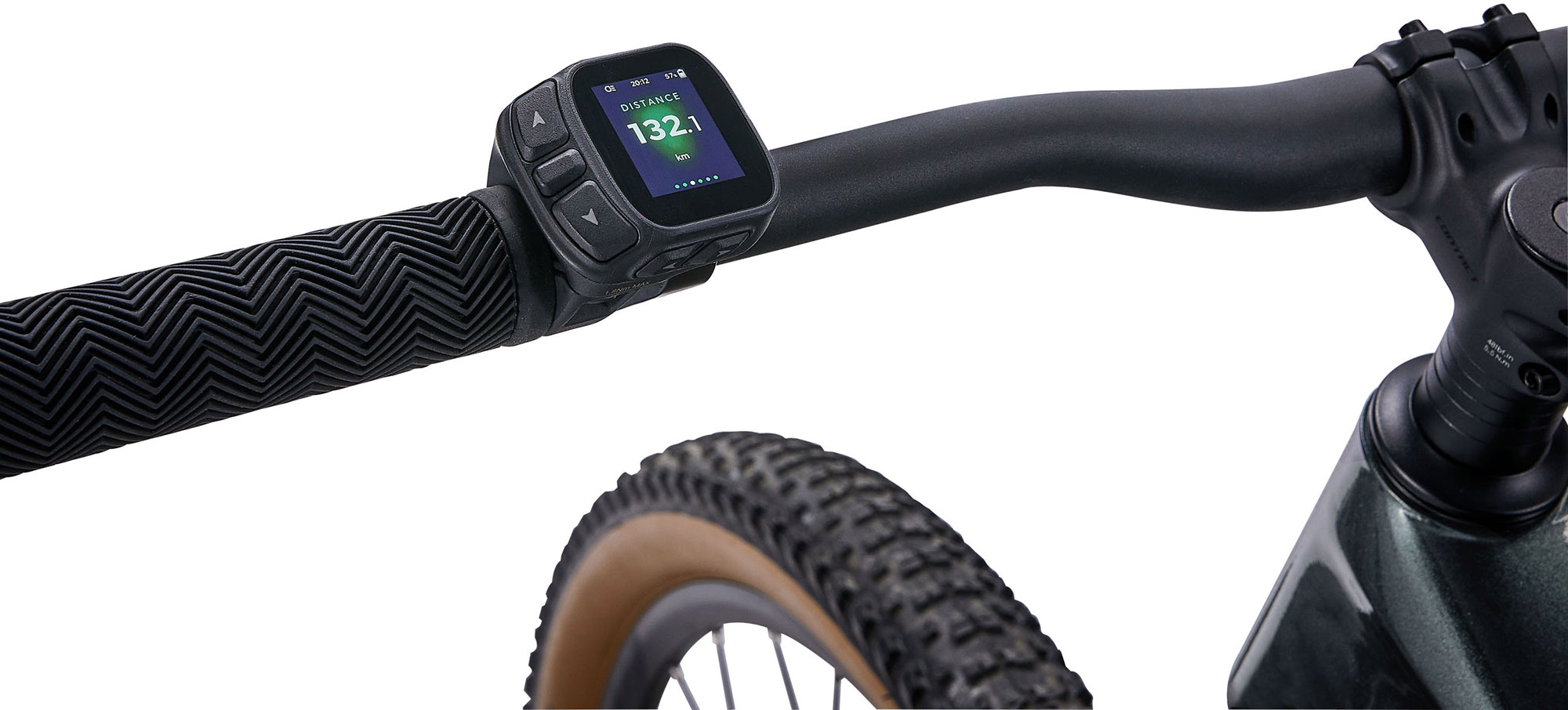

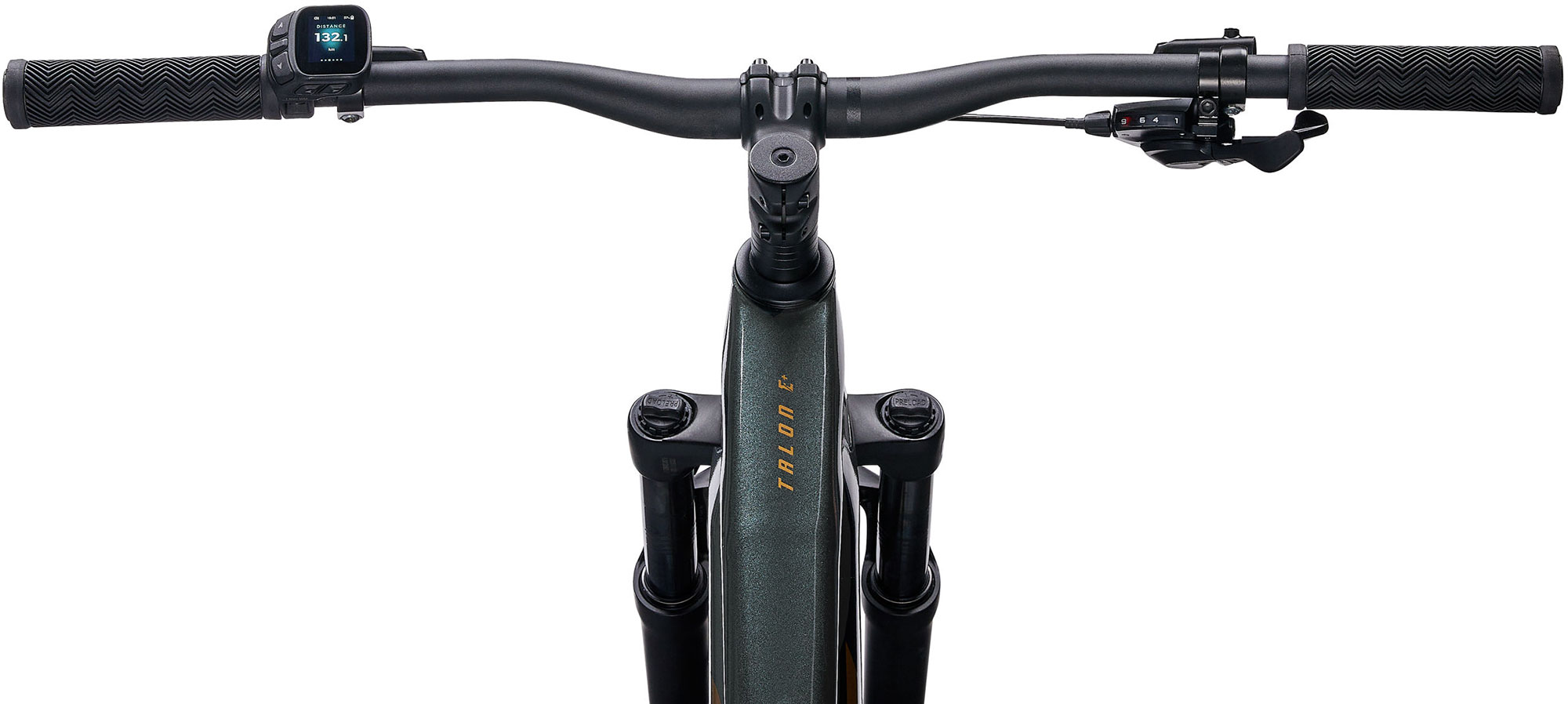

RideControl Dash 2
Intelligent commands
Intuitive technology puts you in control of every ride. RideControl shows you all the important information and functions at a glance, so you can relax and enjoy every ride.
Fully connected
Stay connected to the pedals from the first to the last pedal stroke and stay in control. Every detail has been carefully designed for clarity and ease of use. Ergonomic controls and intuitive displays simplify settings and ensure a completely natural and personalized riding experience.
Simple controls
Enjoy precise handling and elegant simplicity that make every moment even better. Our controls and display are designed for simplicity, creating a unified, responsive cockpit. The sleek design combines functionality with beauty, making every ride a smooth, intuitive experience you'll love.
Your ride, your style
Make your experience your own with intuitive controls right at your fingertips. Your riding style influences every detail of the E+ system. Using the control unit or the RideControl app, you can easily adjust the settings to create a ride that's uniquely yours every time.
Dash 2
Clarity at the touch of a button. Compact design with buttons and display in one, giving you smooth, intuitive control and safety every time you ride. A compact two-in-one unit with color display and USB-C charging for essential data and connectivity.
Every detail in view
Each display fits perfectly into the handlebars and is designed so that you can ride intuitively, see important riding data and have everything under control at a glance.
EnergyPak Comparison table
