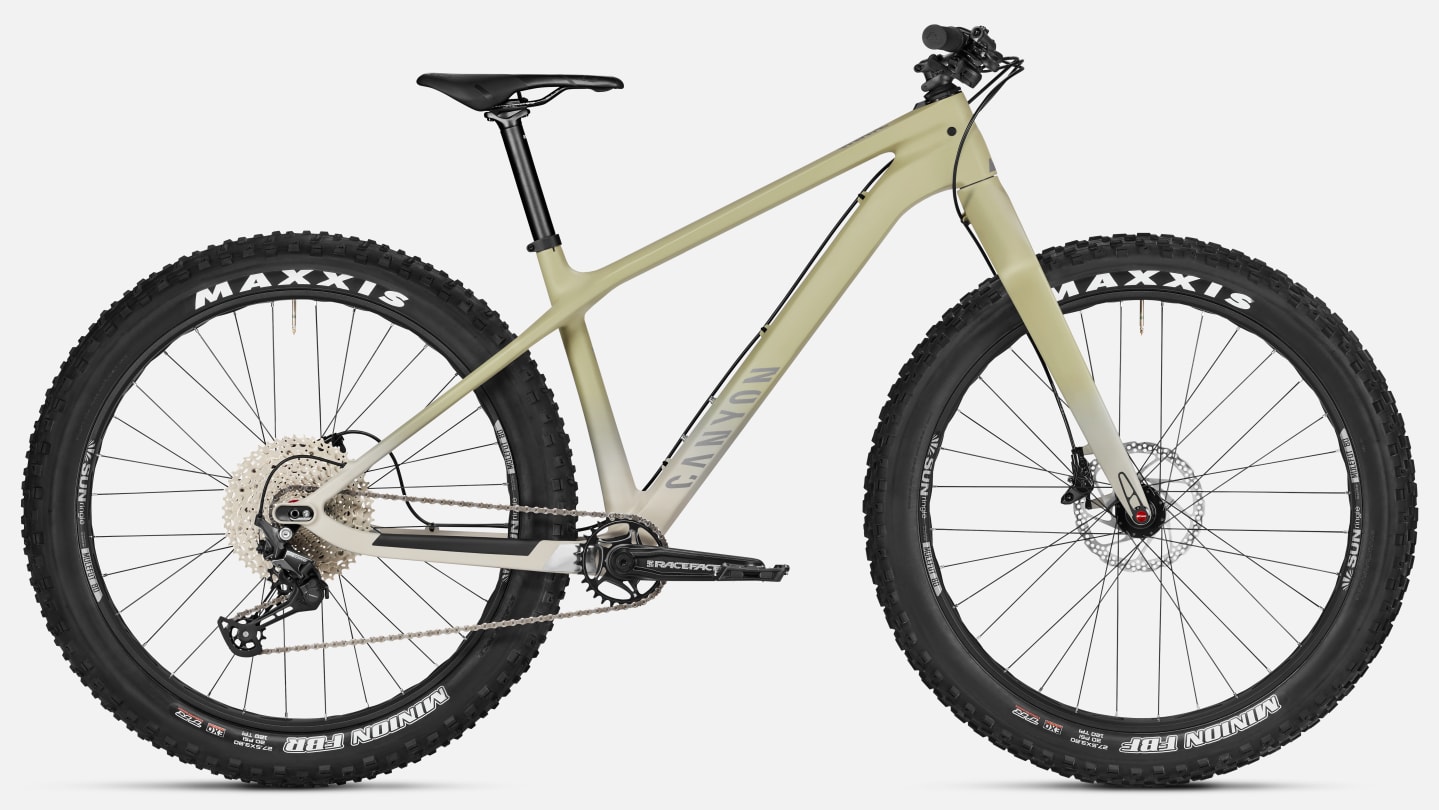

Highlights Dude CF 8
Key features
27.5-inch wheels
Choose your wheel size – 26”, 27.5”, or 29”
A versatile carbon frame
Components
-
Frame
- Canyon Dude CF
-
Axle dimension12x142 mm
-
MaterialCarbon (CF)
-
Weight2.48 lbs
-
Fork
- Canyon FK0033 CF Disc
-
MaterialCarbon (CF)
-
Weight1.63 lbs
-
Seatpost Clamp
- Canyon SC0001
Drivetrain
-
Rear Derailleur
- Shimano Deore M5100 11s
-
Cage lengthlong
-
Weight0.78 lbs
-
Cassette
- SunRace CSMS8 11s 11-51T
-
Number of sprockets11
-
Crank
- Race Face Ride 30T
-
Number of chainrings1
-
Bottom bracket
- Race Face Pressfit
-
Bottom bracket standardPF 121
-
Chain
- Shimano CN-HG601 11s
- Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Brakes
-
Disc Brake
- Shimano Deore MT410
-
Disc Brake
- Shimano Deore MT4100
-
Brake Rotor
- Shimano RT56
-
Size180 mm
-
Weight0.25 lbs
-
Brake Rotor
- Shimano RT56
-
Size160 mm
-
Weight0.30 lbs
Wheels
-
Rear Wheel
- Sun Ringle Mulefüt 80 SL
-
Axle dimension15x150 mm
-
Rotor mountIS 6-bolt
-
Rim materialAluminium
-
Weight2.87 lbs
-
Rear Wheel
- Sun Ringle Mulefüt 80 SL
-
Axle dimension12x197 mm
-
Rotor mountIS 6-bolt
-
Rim materialAluminium
-
Weight3.31 lbs
-
Tyre
- MAXXIS Minion FBF 3.8"
-
Width3.8"
-
Tyre
- MAXXIS Minion FBR 3.8"
-
Width3.8"
-
Thru Axle
- TA CAYN QUIXLE GP0417-03 197X12 LH bk
-
Axle dimension12x197 mm
Cockpit
-
Stem
- Race Face Ride
-
Fork steer tube diameter1 1/8"
-
Clamping diameter35,0 mm
-
Handlebar
- Race Face Next 35
-
Grips
- GRIP ERGN GA2 bk
Seat
-
Saddle
- Selle Italia X-Base
-
Max. Rider Weight100 kg
-
Weight0.72 lbs
-
Seatpost
- SP CAYN Iridium \3-0\ 30,9 400 bk
-
Seatpost diameter30,9 mm
-
MaterialAluminium (AL)
-
Weight0.44 lbs
Light
-
Lights
- Reflector Set
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Smallbox
Geometry & dimensions
Basic geometry
|
Body Height in cm
|
≤ 171 | 171 - 183 | ≥ 183 |
|---|---|---|---|
|
Seat Height in mm (A)
|
598 - 748 | 653 - 803 | 698 - 848 |
|
Seat Tube Length in mm (B)
|
390 | 445 | 490 |
|
Top Tube Length in mm (C)
|
568 | 604 | 641 |
|
Head Tube Length in mm (D)
|
94 | 119 | 144 |
|
Head Tube Angle (E)
|
69° | 69° | 69° |
|
Seat Tube Angle (F)
|
72° | 72,1° | 72,2° |
|
Chainstay Length in mm (G)
|
443 | 443 | 443 |
|
Wheel Base in mm (H)
|
1.103 | 1.143 | 1.182 |
|
Stack in mm (I)
|
605 | 628 | 652 |
|
Reach in mm (J)
|
395 | 425 | 455 |
|
Stand-over Height in mm (K)
|
769 | 794 | 801 |
|
Bottom Bracket Offset in mm (L)
|
60 | 60 | 60 |
Component geometry
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
