Aventure M Ebike

TOP SPEED

Max 28MPH

MID DRIVE MOTOR

750W Peak

(100NM Torque)

ENHANCED TECH

Electronic Shifter with Autoshift Technology

INCREASED SAFETY

Theft Deterrence^†

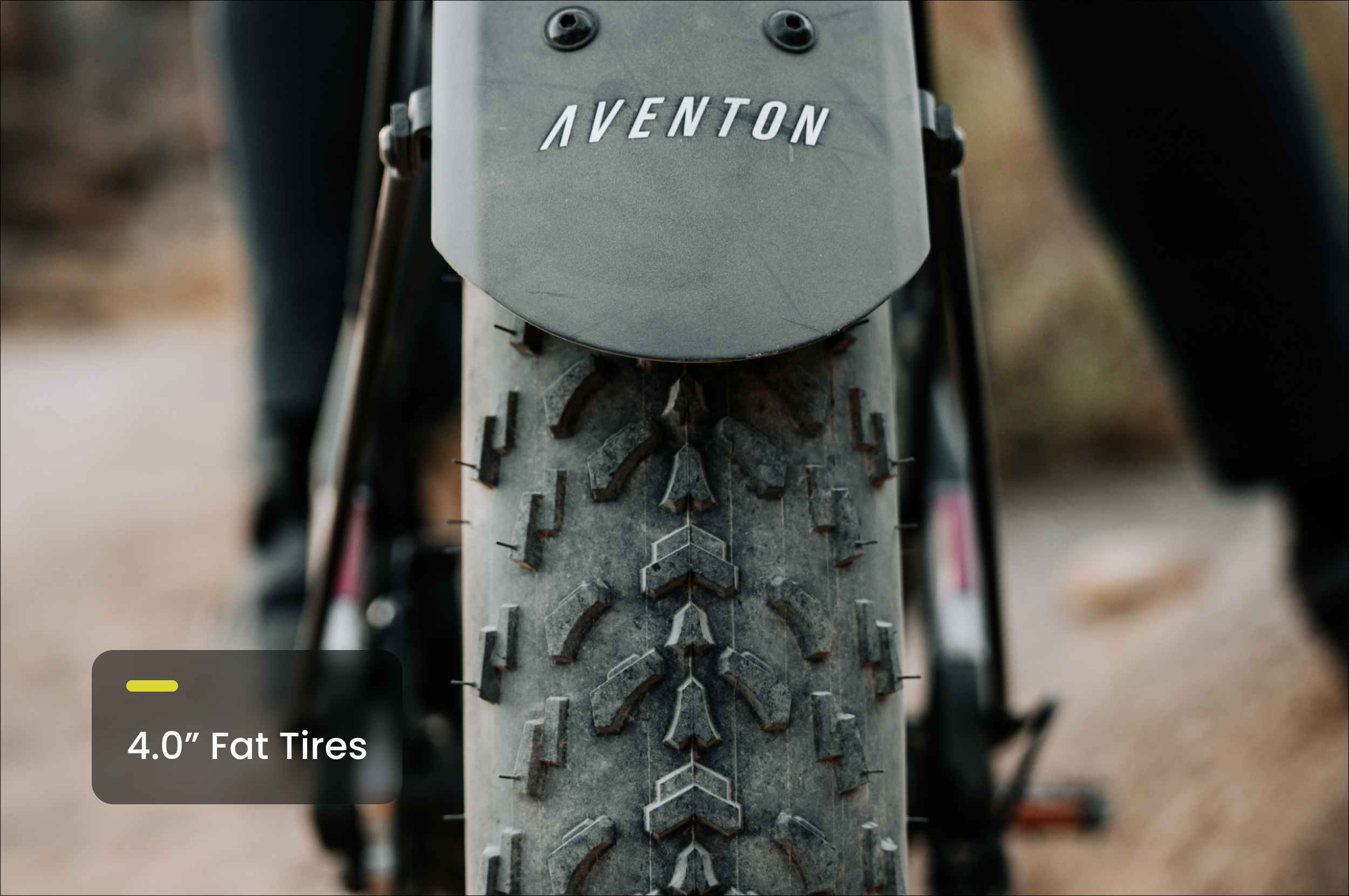

TIRES

4” Fat Tires

PAYLOAD CAPACITY

400 lbs

FEATURES

Aventure M is the perfect blend of rugged capability, performance, and technology to help you explore further than ever before. With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS^† tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there.

Throttle Compatible

Aventure M is a Class 1 eBike with pedal assist, but can easily be converted to Class 2 by installing a throttle and plugging it into the built-in wiring—offering flexibility for different riding needs. (Throttle sold separately)

Electronic Shifter

The electronic shifter is powered directly by Aventure M’s main battery, delivering smooth, reliable shifting without the need for separate charging—ideal for ultra consistent, low-maintenance riding.

AutoShift

Automatic shifting is an optional feature that measures speed and cadence to automatically select the ideal gear for the terrain ahead, so you can forget about shifting gears and focus solely on enjoying the ride.

Auto Mode

No need to switch between pedal assist modes. Auto Mode uses internal sensors to adjust motor support based on the terrain’s slope, delivering just the right amount of power exactly when you need it, resulting in a more natural, seamless ride experience.

Theft Deterrence / Startup Password / GPS^† Tracking

Theft deterrence features like the integrated rear wheel lock, optional startup password, and GPS^† tracking all help protect your bike—making it harder to move without authorization, easier to locate, and giving you greater peace of mind when parked.

Over-the-Air Updates

Over-the-air updates ensure your bike receives the latest ride features and improvements automatically through the bike’s display, keeping it up to date without a visit to the shop.

Geometry

Aventure M Ebike is available in 2 sizes to suit most adults.

Frame Size	Regular	Large
A - Seat Tube Length	430mm (16")	480mm (18")
B - Top Tube Length Horizontal	605mm (23")	643mm (25")
C - Bottom Bracket Drop	65mm (2")	65mm (2")
D - Head Tube Length	140mm (5")	140mm (5")
E - Head Tube Angle	67°	67°
F - Seat Tube Angle	72°	72°
G - Rear Chainstay Length	470mm (18")	470mm (18")
H - Front Wheel Center	693.6mm (27")	731.5mm (28")
I - Wheelbase	1156mm (45")	1194mm (47")
J - Reach	390mm (15")	428mm (16")
K - Stack Height	663mm (26")	663mm (26")
L - Fork Length	525.3mm (20")	525.3mm (20")
M - Fork Offset	43mm (1")	43mm (1")
N - Trail	102.5mm (4")	102.5mm (4")
Wheel Size in Inches	26" x 4.0"	26" x 4.0"
Rider Height (Range)	160cm - 175cm (5'3" - 5'10")	175cm - 195cm (5'10" - 6'4")
